- Place of Origin: China
- Brand Name: JNQSY
- Model Number: T-KNG

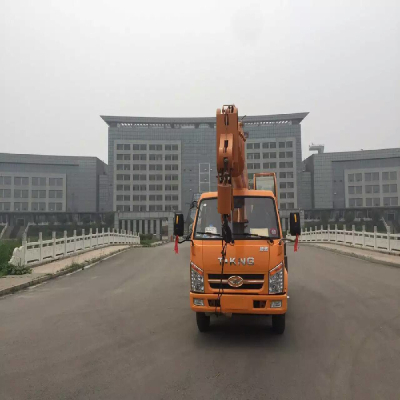

QLY8K Lifting performance | ||||||
Model | QLY8K | |||||
Lifting load | 8 | |||||
Lifting height （ M ） | 20 | |||||
Chassis | Kaima light truck | |||||
Swing radius | 360° | |||||
Outrigger span | 3.73m * 3.5m | |||||
Fully-extending | Min working radius(75°) | 5m | ||||
Max working radius(45°) | 13.5m | |||||
Dead weight in working | 8 ． 6tons | |||||
Dimensions | 8.8 (L) × 2.06 (W) × 2.9 (H) | |||||
Truck name | Kaima light truck | |||||
Truck model | KMC1038 | |||||
Engine model | KM496QBZL | |||||
Power type | Diesel | |||||
Displacement/power(ml/KW) | 3040 | 70 | ||||
Emission standard | GB18352.2—2001 ， GB3847—1999 | |||||
Dimensions | 5980 | 2020 | 2260 | |||
Steel spring （ pcs ） | 6/9 5 | |||||
Quantity of types | 6 | |||||
Types | 7.00-16 | |||||
Tread （ Front/Back ） mm | 1456 | 1485 | ||||
Wheel base （ mm) | 3300 | |||||
Axles | 2 | |||||
Cab （ persons ） | 3 | |||||
Speed of chassis （ km/h ） | 90 | |||||
- Place of Origin: China
- Brand Name: JNQSY
- Model Number: T-KNG
QLY8K Lifting load | ||||||
Boom （m） | Base boom | |||||
7m | 12.9m | 18.8m | ||||
Working radius （ m ） | Lifting load(kg) | Lifting height(m) | Lifting load(kg) | Lifting height(m) | Lifting load(kg) | Lifting height(m) |
1.9 | 8000 | 7.96 | ||||
3 | 5500 | 7.56 | ||||
3.5 | 5100 | 7.23 | 3000 | 13.76 | ||
4.1 | 4800 | 6.97 | 2800 | 13.52 | ||
5 | 3000 | 6.21 | 2600 | 13.18 | 800 | 19.56 |
5.4 | 2600 | 5.77 | 2550 | 13.01 | 800 | 19.41 |
5.6 | 2300 | 5.26 | 2500 | 13 | 750 | 19.35 |
5.8 | 2000 | 4.95 | 2200 | 12.81 | 750 | 19.28 |
6.1 | 1450 | 4.8 | 1900 | 12.65 | 750 | 19.18 |
7.5 | 1400 | 11.77 | 700 | 18.64 | ||
8.1 | 1200 | 11.31 | 600 | 18.43 | ||
9.2 | 1000 | 10.45 | 550 | 17.79 | ||
10.01 | 650 | 9.62 | 550 | 17.31 | ||
10.9 | 500 | 8.11 | 500 | 16.8 | ||
11.3 | 350 | 7.8 | 500 | 16.42 | ||
13.5 | 400 | 14.69 | ||||
14.6 | 350 | 13.48 | ||||
15.6 | 300 | 12.18 | ||||
16.5 | 250 | 10.8 | ||||
